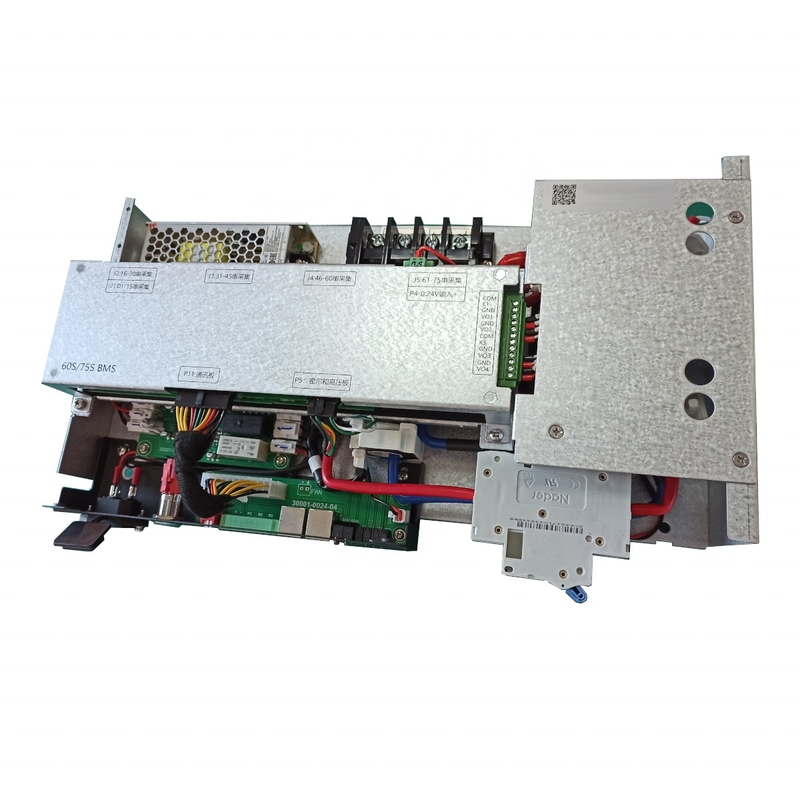

Name: 30S-75S 100A Lithium Battery BMS with CAN RS485 Communication
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S32S100A
Price: 556.00 USD
Availability: InStock

Ürün Detayları

Menşe yeri: Hunan, Çin

Marka adı: GCE

Sertifika: CE/RoHS/UN38.3/MSDS, CE

Model numarası: RBMS07S32S100A

Ödeme ve Gönderim Koşulları

Min sipariş miktarı: 2

Fiyat: $542-571

En İyi Fiyatı Alın

Ürün Detayları

Ürün Açıklaması

Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                100A lithium battery BMS, BMS with CAN RS485 communication, 30S-75S lithium battery BMS


Pil Boyutu:	18650	Ağırlık:	8kg
Akım:	50A/100A	Gerilim:	240V
Teller:	30'lar-75'ler	İletişim:	CAN, RS485
Boyut:	410232128mm	Şarj Oranı:	% 99.8
Deşarj oranı:	% 99.8	Anot malzeme:	LFP NMC LTO'su
Sistem voltaj aralığı:	120 - 228 V DC	Dize Sayısı:	60 S (4 x 15 S)
Denge akımı:	100mA ± 10mA (tek hücre 3.4V)	Sıcaklık doğruluğu:	± 2°C
Gerilim Doğruluğu:	Tek hücre ±20mV

Pil Boyutu:	18650
Ağırlık:	8kg
Akım:	50A/100A
Gerilim:	240V
Teller:	30'lar-75'ler
İletişim:	CAN, RS485
Boyut:	410232128mm
Şarj Oranı:	% 99.8
Deşarj oranı:	% 99.8
Anot malzeme:	LFP NMC LTO'su
Sistem voltaj aralığı:	120 - 228 V DC
Dize Sayısı:	60 S (4 x 15 S)
Denge akımı:	100mA ± 10mA (tek hücre 3.4V)
Sıcaklık doğruluğu:	± 2°C
Gerilim Doğruluğu:	Tek hücre ±20mV

30S-75S 100A Lithium Battery BMS with CAN RS485 Communication

New Arrival Unique Design 32S 50A 100A Lithium Battery Management System 102.4V BMS for Lifepo4 LTO NCM Lithium Battery Pack

Key Features

Master & Slave all in one design
Efficient, stable and reliable performance
Compact size: W410 × H232 × D128cm
Supports 30S-75S lithium battery packs
Communication protocols: CAN, RS485, Dry Contact

Unique Design

The latest product developed by GCE, unique in the market with master-slave integrated design and relay solution for lithium battery packs.

Specifications

Product Name	Integrated BMS (master slave together in one)
Model no.	RBMS07S60S50A
System voltage range	120 - 228 V DC
Startup mode	DC start (optional AC and DC starter)
Number of battery strings	60 S (4 × 15 S)
Balance type	Passive resistance equalization
Balanced current	100mA ± 10mA (Single cell 3.4V)
Temperature Sampling	12 Battery temperature (4×3), Accuracy: ±2℃
Voltage Sampling	Single cell ±20mV
Communication mode	CAN: 1 channel, RS485: 1 channel, Bluetooth: optional, GPRS: optional
Hall sensor specifications	50A/100A
Operating Temperature	Charging: -10～75℃, Discharging: -20 to 75℃, Storage: -40 to +75℃

Product Features

High integration with less installation space
Long life cycle (>3000 times at 80% DOD)
Environmentally friendly (no heavy metals)
Maintenance free with no memory effect
Internal BMS with full protection
Master and Slave all in one design

Applications

Home storage
Island off-grid energy storage
Micro-grid applications
UPS power supply
Power System 220V DC power supply

FAQ

1. Are you a manufacturer or simply a trading company?

We are a manufacturer, and we sincerely welcome you to visit our factory.

2. Can I get some samples?

Yes, a sample order is available for quality checking and market testing.

3. What kind of cells are applicable to this Battery Management System?

LFP, NMC, LTO

4. How about the delivery time?

The lead-time usually takes about 15 to 20 working days accordingly to the specification of your order and quantity.

5. What are your terms of payment?

Advanced T/T is the main payment term, and other payment terms are negotiable. Please contact us, we'll discuss the details.

6. What are your warranty terms?

We offer a 3-year warranty for RBMS, 1-year warranty for PCB.

12. How to Contact with you?

You can contact with Cara for quotation. Whatsapp&Skype: +8617321496453, Email: cara@hngce.com
